Introduction

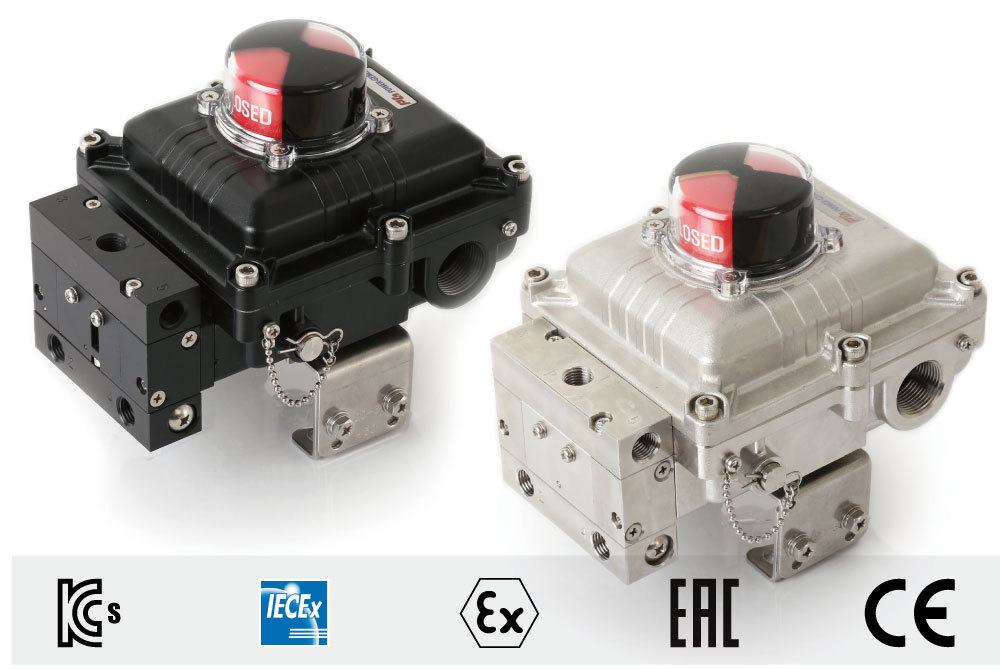

Explosion-proof robust valve position monitor with built-in solenoid and more feedback options designed to provide an outstanding performance under harsh working environments



Features

- Flameproof / explosion-proof enclosure (Exd IIB+H2 T6 IP66)
- Rugged aluminum die-cast housing
- Compact single unit with built-in solenoid valve
- Auto / Manual button easy to convert
- NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator

Option

- 4 x SPDT mechanical limit switches
- 4 x inductive sensors
- 4-20mA output position transmitter
- SUS316 Solenoid vavle

Specifications



 LSB-7000Protection ClassFlameproof ( Ex d IIB+H2 T6, IP67)Operating Air Pressure

1.5 ~ 10kgf/cm2(single coil)
1.0 ~ 10kgf/cm2(double coil)

Air Supply(Max.)

Max 15kgf/cm2

Solenoide Valve Operating Voltage

24 VDC / 110 AC / 220 AC

Solenoide Valve Manual Override

Push Button

Solenoide Valve Response Time

25msCoil Insulation ClassF - ClassOperating Temperature

-30 ~ +75℃

Pneumatic ConnectionsRc 1/4 or NPT 1/4

Electrical Connections

G 3/4, G 1/2, G 1, NPT 3/4, NPT 1/2, NPT 1Body MaterialAluminum die-cast / powder-paintedWeight2.5
